Working table

Dim.:1372x508mm

Heigh:865mm

Weigh:23Kg



Price:160 euro

Equipements











Working cabinet

Struttura in lamiera d’acciaio montata

su ruote

Base:680x470x654mm

5 drawers

weigh:50 Kg 190 euro

upper cabinet:

686x317x376mm

6 drawers

weigh:27Kg 88 euro

Service cart



Dim.815x440x290mm

3 layers

Max load:100Kg

Weigh:22Kg



Price:45 euro











Transpallet idraulico



Portata: 2500 kg.

Dim. forche: 685x1220mm

Peso: 80 Kg

Doppia ruota in nylon

Prezzo:220 euro



Elevatore idraulico



Portata: 1000Kg

Max altezza:1500mm

Lungh.forche:900mm

Regolaz.forche:320-750mm

Dim:1450x770x1970(h)mm

Peso: 240 Kg



Prezzo:730 euro

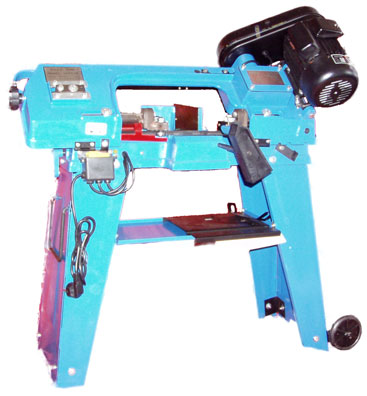

Metal cutting bandsaw

capacity 90 degree:180mm

capacity 45 degree:110mm

Dim.blade:2360x20x0.9mm

Vel.blade:40-120m/min

vise:0-45 gradi

Motor:1 Hp

weigh:170 Kg

Price:800 euro

Blade exchange: 60 euro



Metal cutting bandsaw

capacity  90 degree:114mm

capacity 45 degree:70mm

Dim.blade:1638x12.5x0.6mm

Vel.blade:20-50m/min

vise:0-45 gradi

Motor:1/2 Hp

weigh:65 Kg   Price:200 euro



Blade exchange: 20 euro











Belt & disk sander

Belt size:102x915mm

Disk diam.:152mm

Power:380W

RPM:2850 rpm

Power supply:220Volt

weigh:18 Kg

Price:95 euro



Belt exch.: 3 euro

Disk exch.: 3 euro

Dust collector

Motor:1 Hp

Air capacity:1020 mc/h

Diam.fan:230mm

Diam.hole:100mm

capacity of bag:0.07mc

Dimens.:650x420x1550

weigh:27 Kg

Price:120 euro



Bag exch.: 10 euro













Bending machine



Thikness max: 1,5 mm

Width.: 1220 mm

Angle.: 0 - 135°

weigh: 180 kg

(bench excluded)



Price:400 euro



Banco non compreso nel prezzo











3-in-1

Thickness max: 1 mm

Width: 760 mm

Min rolling diam.: 39 mm

Angle.: 0 - 90°

weigh: 140 kg.

Price:310 euro

Air compressor 100 lt

*In dotazione a macchina combinata

Serbatoio:100lt

Motor:2,5Hp

Power supply:220Volt

RPM:2850/min

Air:260 litri/min

Pression:8 bar

weigh:51 Kg



Price:200 euro





Bench grinder



Diam.Disk:200mm

Thickness disk:20mm

RPM:giri/min:2840

Power supply:220Volt



Price:38 euro









Inverter  plasma Cut

*In dotazione a macchina combinata

Power supply:220Volt

Power  max:4 Kwatt

weigh:13 Kg

Torch:S45 lungh.6mt

Thicness max Cut :

steel         alumin.

10mm        8mm



Price:750 euro

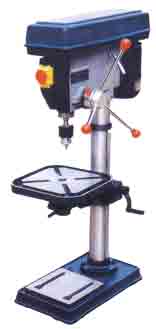

Drilling machine



Mod.                           ZX-16E      ZX-19J      ZX-32GF

Capacityof drilling        16mm        19mm       32mm

Spindle travel               80mm       85mm     125mm

Spindle taper               MT2          MT2         MT4

Diam.column               72mm        80mm      92mm

velocity(rpm)               300-3200    250-3200  160-2060

Dist. Spindle-column    182mm       178mm     300mm

travel of table       :       365mm       395mm    500mm

Dim. table                    290mm      260x260   470x420

Motor                          3/4 Hp         3/4Hp        1Hp

weigh 55Kg           72Kg        180Kg

150 euro   190 euro  460 euro

Inverter Plasma cut



*In dotazione a macchina combinata

Power supply:220monof./380 trif.

Power  max:5 Kw

Torch  cnc lengh. 6 meters

arc:hight frequencya

Thickness  max cut :12mm on steel



      Price: 980 Euro











Tools grinding machine

Diam.disk:120mm

Power.220Volt

weigh:50 Kg



      Price: 280 Euro

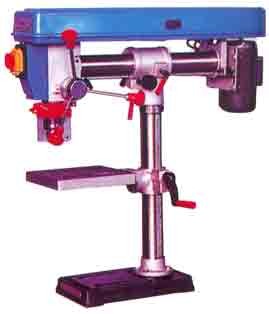

Trapano radiale

170 euro

Capacità di foratura: 16mm

Corsa mandrino:80mm

Attacco mandrino:B16

Diametro colonna orizzontale:60mm

Diametro colonna verticale:60mm

velocità(rpm):460-2890

Dist. mandrino-colonna:320mm Max

Dimensioni tavola: 230x217mm

Motore:3/4 Hp

Peso:40 Kg

Belt & Disk sander

Motor:3/4 hp 220Volt

Dim.table:260x191mm

Angle table:0-45 gradi

Dim.belt:1220x155mm

Diam.disk:229mm

weigh:58 Kg

Price:230 euro



belt exch.:10 euro

Disk exch.:7 euro

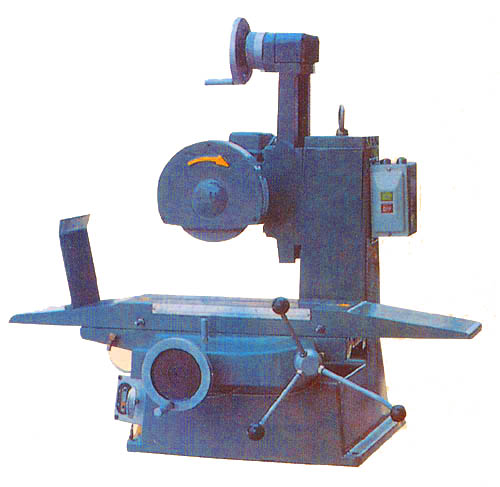

Surface grinder machine

Dim.table:152x304mm

Cross travel :340mmx70mm

Max heigh :210mm

Dim.disk:180x31,75x13mm

Rugosity':1,6micron

weigh:260 Kg

Price:1600 euro

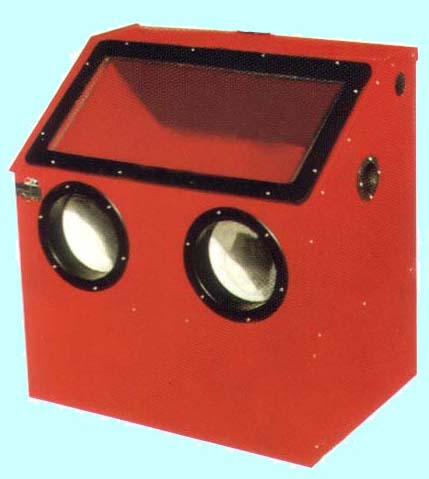

Sabbiatrice

Dim.:740X540X770mm

Sportello trasparente con chiusura ermetica

Fori con protezione per manipolazione del pezzo

Lampada in dotazione

weigh:28Kg

Price:140 euro
